B226WLymdpr
22'' Wide 16:10 - 1680x1050@60Hz - 5 ms - 100.000.000:1 - 250 cd/m² - LED - VGA - DVI - Display Port - SPEAKERS 2x1W - Height - Pivot - 3 Years Carry In - ES6.0 - TCO6.0
Adaptable

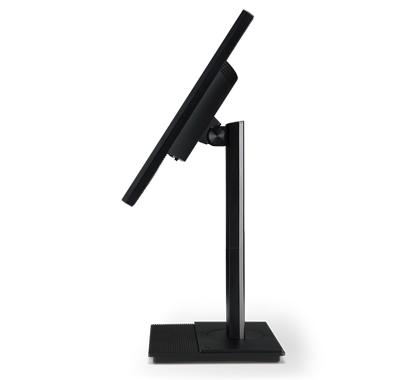

Explore the angle that's perfect for you with select Professional Series monitors, which tilt, swivel, pivot and adjust for height to achieve the optimal position for extended viewing. Ergonomic designs provide handsome style on your desk -- or off: These monitors are wall mountable, giving you clear views with more room.
Convincing
Focus more sharply on your tasks with the superior contrast ratios and ultra-quick response of Professional Series monitors. In-Plane Switching (IPS) technology delivers consistent viewing across wide angles, faster response time for reduced eye strain, more realistic colors, and a stable view that prevents tailing when the screen is touched.
Prepared
Collaborating with others is faster and more productive when you have plenty of ports available. Professional Series monitors allow you to connect to a wide variety of useful devices including notebooks, tablets and giant screen TVs, thanks to helpful VGA, DVI, HDMI®, USB and even DisplayPort™ connectivity options.1
Green focus
Professional Series monitors are RoHS compliant and mercury free. In addition, you'll see power savings of up to 68% thanks to advanced Acer EcoDisplay technologies and white LED backlighting, which cut your costs and conserve the earth's resources. Acer also uses recyclable packaging to further reduce ecological impact.
| Technical Information |
| Number of Screens |
1 |
| Screen Size |
55.9 cm (22") |
| Screen Mode |
WSXGA+ |
| Response Time |
5 ms |
| Aspect Ratio |
16:10 |
| Horizontal Viewing Angle |
170° |
| Vertical Viewing Angle |
160° |
| Adjustable Display Angle |
Yes |
| Backlight Technology |
LED |
| Video |
| Maximum Resolution |
1680 x 1050 |
| Standard Refresh Rate |
60 Hz |
| Colour Support |
16.7 Million Colours |
| Contrast Ratio |
100,000,000:1 |
| Brightness |
250 cd/m² |
| Audio |
| Number of Speakers |
2 |
| Speakers |
Yes |
| Interfaces/Ports |
| DVI |
Yes |
| VGA |
Yes |
| Built-in Devices |
| Built-in Devices |
Speaker |
| Power Description |
| Input Voltage |
110 V AC
220 V AC
|
| Operating Power Consumption |
24.20 W |
| Standby Power Consumption |
450 mW |
| Off-Mode Power Consumption |
350 mW |
| Physical Characteristics |
| Colour |
Dark Grey |
| Height |
534.2 mm |
| Width |
505.7 mm |
| Depth |
221.2 mm |
| Weight (Approximate) |
3.09 kg |
| Weight with Stand (Approximate) |
5.75 kg |
| Miscellaneous |
| Package Contents |
- B226WL Widescreen LCD Monitor
- 1 x VGA Cable
- 1 x DVI Cable
- 1 x DisplayPort Cable
- Power Cord
|
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
EPEAT Gold
TCO Certified Displays 6.0
|
| Garanti |
| Garanti |
Standard Warranty |
Display |
|---|
| Skärm diagonal | 55,9 cm (22") | | Upplösning | 1680 x 1050 pixlar | | Native bildförhållande | 16:10 | | Skärmtyp | LED | | Pekskärm | | | HD-typ | WSXGA+ | | Paneltyp | TN+Film | | Ljusstyrka (normal) | 250 cd/m² | | Svarstid (medel) | 5 ms | | Skärmform | Platt | | Grafikupplösningar som stöds | 1680 x 1050 (WSXGA+) | | Bildförhållande | 16:10 | | Kontrastförhållande (dynamisk) | 100000000:1 | | Betraktningsvinkel (horisontell) | 170° | | Synfältsvinkel (vertikal) | 160° | | Antal färger | 16,78 miljoner färger | | 3D kompatibilitet | | Multimedia |
|---|
| Inbyggda högtalare | | | Inbyggd kamera | | | Antal talare | 2 | Design |
|---|
| Produktens färg | Grå | | Certifiering | TCO 6.0 | Anslutningar |
|---|
| Kvalitet på VGA (D-Sub) porten | 1 | | DVI-port | | | Antal Displayportar | 1 | | Strömingång | | Ergonomi |
|---|
| VESA-fäste | | | Gränsssnitt för panelmontering | 100 x 100 mm | | Produktvikt (oz) | | | Höjdjustering | | | Höjdjustering | 15 cm | | Svängarm | | | Lutningsvinkel | -5 - 35° | | Skärmgränssnitt (OSD) | | | Plug & Play-kompatibel | | | Lutningsjustering | | Strömtillförsel |
|---|
| Energieffektivitetsklass (SDR) | F | | Energiförbrukning (SDR) per 1 000 timmar | 20 kWh | | Strömförbrukning (vanlig) | 20,3 W | | Strömförbrukning i vänteläge | 0,5 W | | Strömförbrukning i avslaget läge | 0,3 W | | AC-inspänning | 110 - 220 V | | Energieffektivitetsskalning | A till G | Förpackningens innehåll |
|---|
| Kabel inkluderad | AC, DisplayPort, DVI, VGA | Vikt & dimension |
|---|
| Bredd (med stativ) | 505,7 mm | | Djup (med stativ) | 221,2 mm | | Höjd (med stativ) | 534,2 mm | | Vikt (med stativ) | 5,75 kg | | Bredd (utan stativ) | 50,6 cm | | Vikt (utan stativ) | 3,09 kg | Hållbarhet |
|---|
| Hållbarhetscertifiering | EPEAT Gold | Logistikdata |
|---|
| Harmonized System (HS)-kod | 85285210 | Tunn klient |
|---|
| Tunn klient installerad | | Övrigt |
|---|
| Displaytyp | LED | | På / av-knapp | | | Inbyggd TV mottagare | |
|
